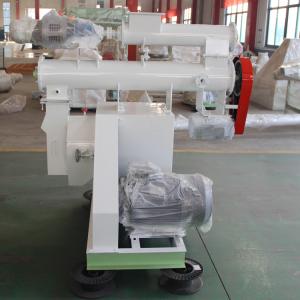

Animal Chicken Cattle Pig Livestock Poultry Feed Pellet Mill Machine
Product description:
1.Poultry feed mill machine/pellet machine makes 1.5-8 mm diameter feeds.such as 2-4mm diameter chick feeds and pig feeds.1.5-3mm
fish feeds,2-5mm rabbit feeds and so on.
2.The formation rate can reach 98% and the friction can be fallen to the bottom.key parts are made by our CNC system , which is high precision and quality, so we can ensure pressing effiency.
3.Poultry feed mill machine/pellet machine is forced material-entrance and overload protection device make it more safer to work.
Parameter:
| Model No. | Main motor power | Capacity (t/h) | Ring die inner diameter (mm) | Feeder power (kw) | Conditioner motor power (kw) | Size (mm) | Weight (kg) |
| SZLH250 | 22kw | 0.6-1 | 250 | 0.75 | 1.1 | 1750×650×1750 | 800 |
| SZLH320 | 37kw | 1-3 | 320 | 0.75 | 2.2 | 1900×1800×1650 | 2000 |
| SZLH350 | 55kw | 3-5 | 350 | 0.75 | 2.2 | 2100×2000×1850 | 2400 |
| SZLH420 | 110kw | 8-10 | 400 | 1.5 | 4 | 2200×2000×2150 | 2900 |
| SZLH508 | 132/160kw | 10-18 | 450 | 1.5 | 4 | 2300×2350×2150 | 3500 |
Pellets diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
Feature:
1.Feeder, conditioner, and chute of this animal feed pellet machine are all made of stainless steel
for durability.
2.The feeding system adopts electromagnetic speed control design, which is convenient in speed adjusting and fully
adapts to the requirements of different materials.
3.The main drive adopts high-precision gear transmission, and the ring die adopts the quick release hoop type, which is easy to disassemble and the output is increased by about 20% compared with the belt
drive type.
4.Safe and reliable with safety devices such as strong magnetic security magnets and overload protection device.
5.Top configuration: SKF bearings, Siemens motors, Schneider Electric, on-site touch screen operation cabinet.
