Carbon Steel Animal Feed Pellet Machine Feed Pellet Making Machine

Product Categories
ZHENGZHOU SHENGHONG HEAVY INDUSTRY TECHNOLOGY CO., LTD
Contact Now

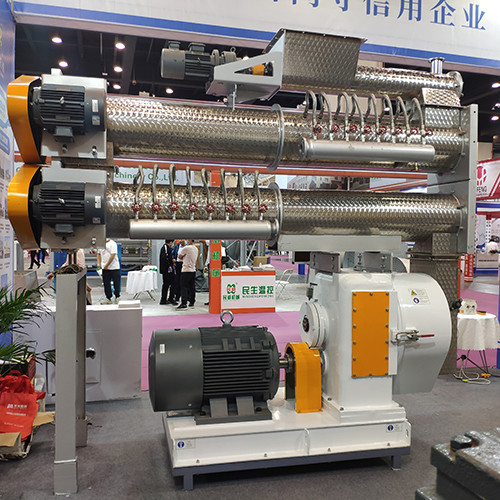

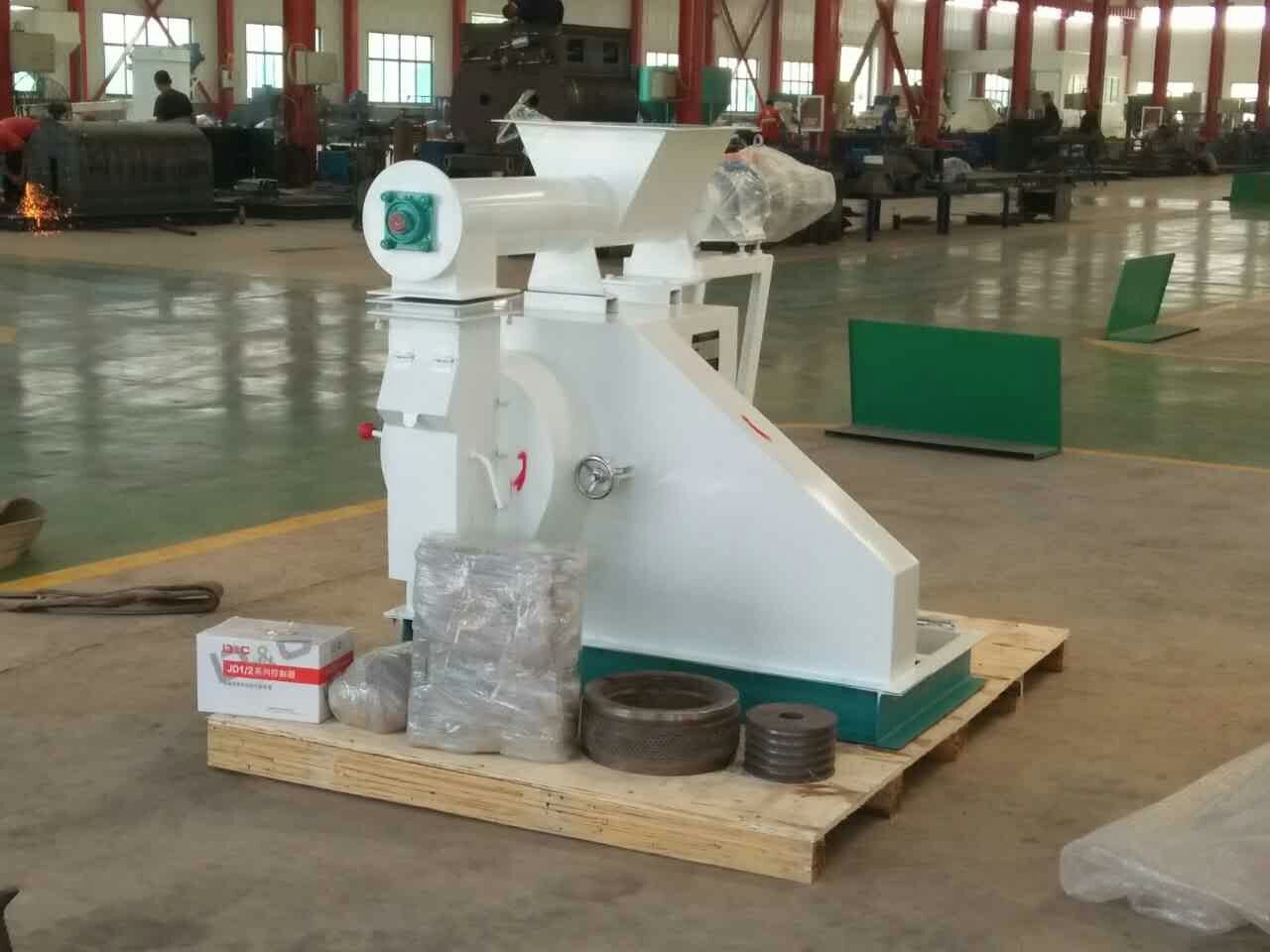

Carbon Steel Animal Feed Pellet Machine Feed Pellet Making Machine

  • 1
  • 2

Brand Name : Shenghong

Model Number : SZLH250

Certification : BV, SGS, ISO9001, CE

Place of Origin : Henan, China

MOQ : 1 Piece

Price : USD 5999-29999

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20 sets per month

Delivery Time : within 15 days

Packaging Details : 20GP, 40GP, 40HQ

Product name : Animal Feed Pellet Machine Manufacturer Feed Pellet Making Machine

Raw material : Carbon steel

Dimension : 3260*1100*2200mm

Voltage : 380V, 50hz, 3 phase

Screw diameter : 155mm

Application : Animal feed pellet machine

Contact Now

Animal Feed Pellet Machine Manufacturer Feed Pellet Making Machine

Introduction:
Animal feed pellet machine is the main feed machinery product produced by our factory at present. This machine is a feed pellet machine designed by our factory's technicians, who have studied and improved over many years' production experience, carefully manufactured feed pellet machine, selected gears as transmission, avoided slippage of belt drive and abrasion of belt too fast. The feed pellet machine belongs to feed pellet machine equipment.
Parameter
Model
SZLH320
SZLH350
SZLH400
SZLH420
SZLH508
Output
2-5T/H
1.5-8T/H
2-10T/H
3-12T/H
4-20T/H
Main Motor Power
37KW
55KW
75/90KW
110KW
132/160KW
Screw Feeder Power
0.55KW
0.75KW
0.75KW
1.5KW
1.5KW
Conditioner Power
2.2KW
2.2KW
2.2KW
5.5KW
7.5KW
Ring die inner diameter
320mm
350mm
400mm
420mm
508mm
Ring die rotational speed
305PRM
336PRM
307PRM
287PRM
287PRM
Screw Feeder rotational speed
12-120RPM
Conditioner rotational speed
350RPM

Pellets diameter
2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Number of roller
2
Roller outer diameter
140mm
165mm
190mm
206mm
/
Pellets shaping rate
≥95%
Pellets stability in water
≥20Min
Noise
≤90dB(A)
Roller working temperature
≤85℃
Steam working pressure
0.1-0.4Mpa
Steam temperature
130-150℃
Dimension(m)
2.3*1*2.1
3.2*1.1*1.7
3.2*1.3*1.9
3.5*1.3*1.9
3.5*1.5*2.9

Application
Simple structure, wide applicability, small floor area and low noise.
Powdery feed and grass meal can be granulated without or with a little liquid.
The pellets made by the feed pellet machine have high hardness, smooth surface and full maturity, which can improve the digestion and absorption of nutrients and kill common pathogenic microorganisms and parasites. They are suitable for feeding rabbits, fish, ducks and experimental animals, and can obtain higher economic benefits than mixed powder feed.
The feed pellet machine has a variety of aperture moulds, suitable for granulation of different materials, and achieves the best result.
It can adapt to different materials and ensure the pressing effect. Compression molding of sawdust and corn straw requires a lot of pressure. In the granulating equipment, the roller component is the central part of the whole equipment. The company uses high-quality alloy steel to improve the service life of rollers.
